Products
|

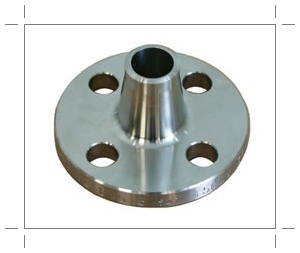

Weld Neck Flange
Our weld neck flanges feature high strength,good toughness,and high reistance to
corrosion,high pressure and temperature.The raw materials of them come into carbon
steel,stainless steel,alloy steel,low temperature steel and high performance steel.Also,we
can provide customized flanges according to customers'requirements.
Size
Weld Neck Flange: 3/8"~160"
DN10~DN4000
Pressure
American Series: CLASS 150, CLASS 300, CLASS 400, CLASS 600, CLASS 900, CLASS 1500,
CLASS 2500
European Series: PN 2.5, PN 6, PN 10, PN 16, PN 25, PN 40, PN 63, PN 100, PN 160,
PN 250, PN 320, PN 400
Flange Facin Types
American Series:Flat Face (FF), Raised face (RF), groove (G), femaie(F), ring joints
face(RJ)
|

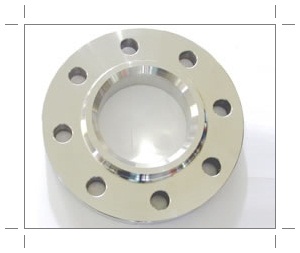

Slip On Weld Flange
Slip on weld flange can be slid onto a pipe and then welded in place.It is made of
carbon steel,alloy steel,and stainless steel.The industrial processes come into
die forging,and machining,We can provide a wide range of slip-on weld flanges,following
on standards like ASME B16.5,ASME B16.47,DIN 2634,DIN 2630,and so on.
Size of slip on weld flange
Slip on weld flange: 3/8"~40"
DN10~DN1000
Pressure
American Series: CLASS 150, CLASS 300, CLASS 400, CLASS 600, CLASS 900, CLASS 1500,
CLASS 2500
European Series: PN 2.5, PN 6, PN 10, PN 16, PN 25, PN 40, PN 63, PN 100, PN 160,
PN 250, PN 320, PN 400
Flange Facing Types
American Series:Flat Face (FF), Groove (G), Ring Joints Face(R)
|

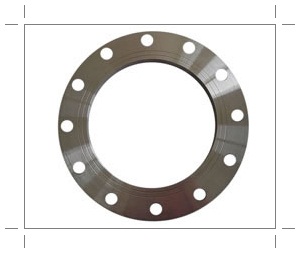

Plate Weld Flange
Our plate weld flanges are made of carbon steel,alloy steel,stainless steel,and
high performance steel.They are manufactured,strictly according to ISO9001 quality
management system,and in accordance with standards like ASME B 16.5.ASME B 16.47,DIN
2634,DIN 2630,and DIN 2635,and so on.Thus,you can feel free to choose them.
Size
Plate Weld Flange: 3/8"~100" DN10~DN2500
Pressure
American :CLASS 150, CLASS 300, CLASS 400, CLASS 600, CLASS 900, CLASS 1500, CLASS
2500
European Series:PN 2.5, PN 6, PN 10, PN 16, PN 25, PN 40, PN 63, PN 100, PN 160,
PN 250, PN 320, PN 400
Flange Facing Types
American Series:Flat Face(FF), Raised Face(RF), Groove (G), Female(F), Ring Joints
Face(RJ)
|
Blind Flange
Blind flanges are made of carbon steel,stainless steel and alloy steel,etc.They
are used to seal or block off a pipe,like a cover or cap.We can provide a wide range
of blind flanges,in accordance to standards like ASME B16.5,ASME B16.47,DIN 2634,DIN
2636,and so on.
Size
Blind Flange: 3/8"~100"
DN10~DN2500
Pressure
American Series: CLASS 150, CLASS 300, CLASS 400, CLASS 600, CLASS 900, CLASS 1500,
CLASS 2500
European Series: PN 2.5, PN 6, PN 10, PN 16, PN 25, PN 40, PN 63, PN 100, PN 160,
PN 250, PN 320, PN 400
Flange Facing Types
American Series:Flat Face (FF), Raised Face (RF), Groove (G), Female(F), Ring Joints
Face(RJ)
|
|
